TURN-KEY PROTECTION FOR CIVILIAN VEHICLES
FB - DIN EN 1522/23 protection kits with easy integration
Turn-key protection to European standards
The need for ballistic protection for vehicles in law enforcement and civilian roles are increasing. More and more vehicles are protected with composite kits that protect the cabin or cargo area, and the protection requirement increases. Normal protection solutions are developed to perform in accordance with FB - DIN EN 1522/23 levels 4-7. These protection levels cover a wide array of recurrent threats.
TenCate Advanced Armour have a decade-long experience in armour solutions for sedans, estates, and vans. We use our expertise in lightweight composite materials to develop and adapt lightweight armour kits with little to none effects on overall vehicle or component functionality. The ballistic performance is certified with independent test institutes.
Due to our experienced engineering team, we can now provide turn-key solutions where TenCate Advanced Armour integrates the solution on the vehicle. We use non-invasive installations methods and can install tailored protection solutions on short notice. You bring the car and we provide the rest.
- Turn-key solutions
- Non-invasive integration methods
- Individually adapted protection kits
- Fast delivery
Protection levels
FB4
The FB - DIN EN 1522/23 level 4 provides protection against .357 Mag. and .44 Rem. Mag. Both threats cover the upper limit of prevalent handgun threats and will also provide protection against 9 mm Luger.
FB4 + 7.62x39 MSC
The FB - DIN EN 1522/23 level 4+ is an unofficial but highly relevant protection level. The level composes the threats listed in FB 4 and adds protection against the 7.62x39 MSC from an AK47.
FB5
The FB - DIN EN 1522/23 level 5 is the lowest official level of protection against rifle ammunition. The FB 5 level certifies protection against the 5.56 NATO round as well as threats below it in the DIN EN1522/23 scope.
FB6
The FB - DIN EN 1522/23 level 6 protects against 5.56x45 armour piercing rounds as well as 7.62x51 FMJ lead core threats. The protection level is lowest level that protects against the three most prevalent rifle threats.
FB7
The FB - DIN EN 1522/23 level 7 is the highest protection level prevalent in police and vehicles. The protection level covers the upper limit for 7.62x51 armour piercing rounds and provides protection against 7.62x39 MSC and 5.56x45 M193 and M885.
.jpg?w=8)
.jpg?w=8)
.jpg?w=8)
.jpg?w=8)
Reference projects
.jpg?w=1&h=1)

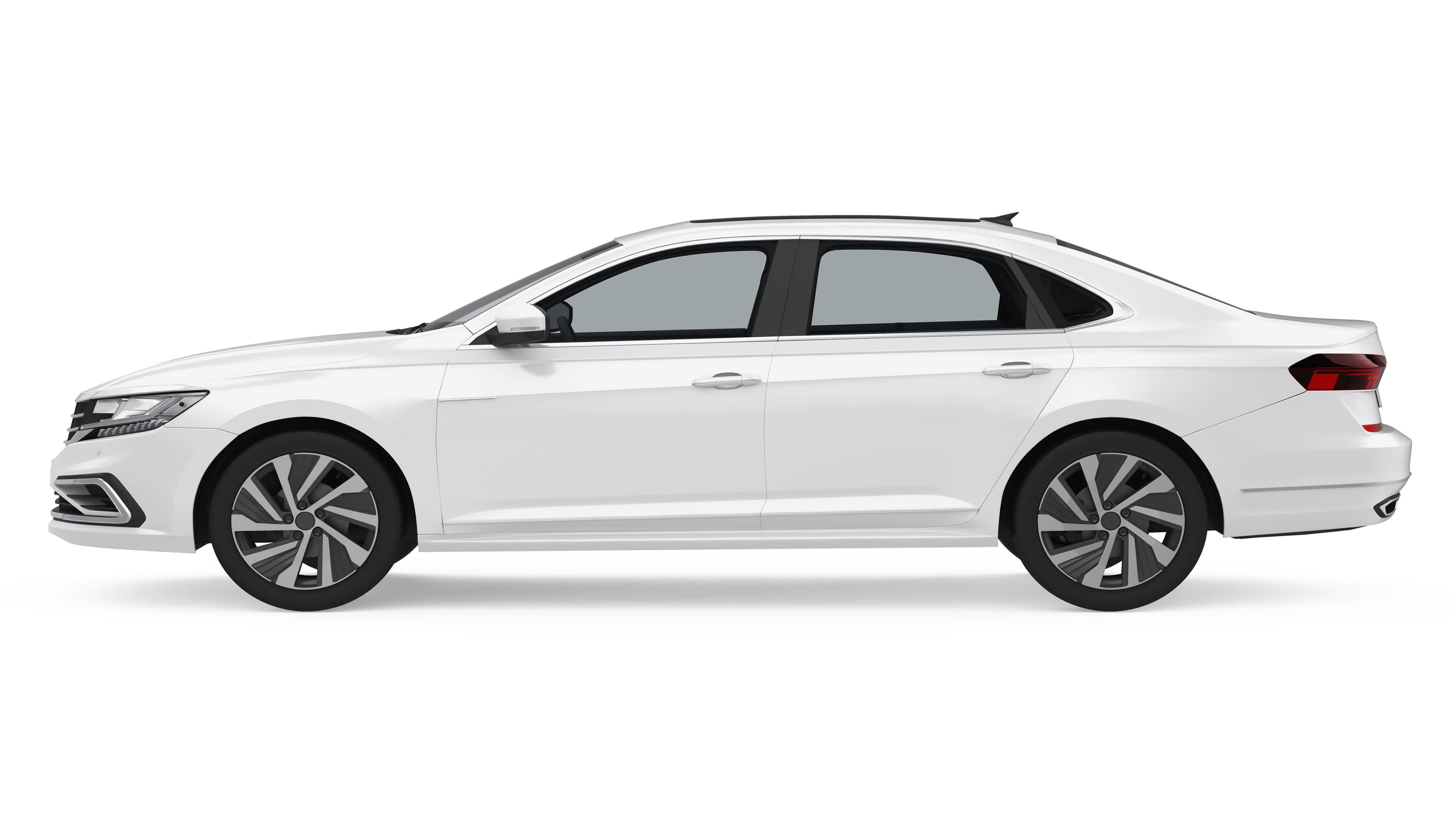

Luxury cars
Protected cabin and backwall behind rear seats in accordance with FB - DIN EN 1522/23 level 4.
%20(16x9).jpg?w=1&h=1)

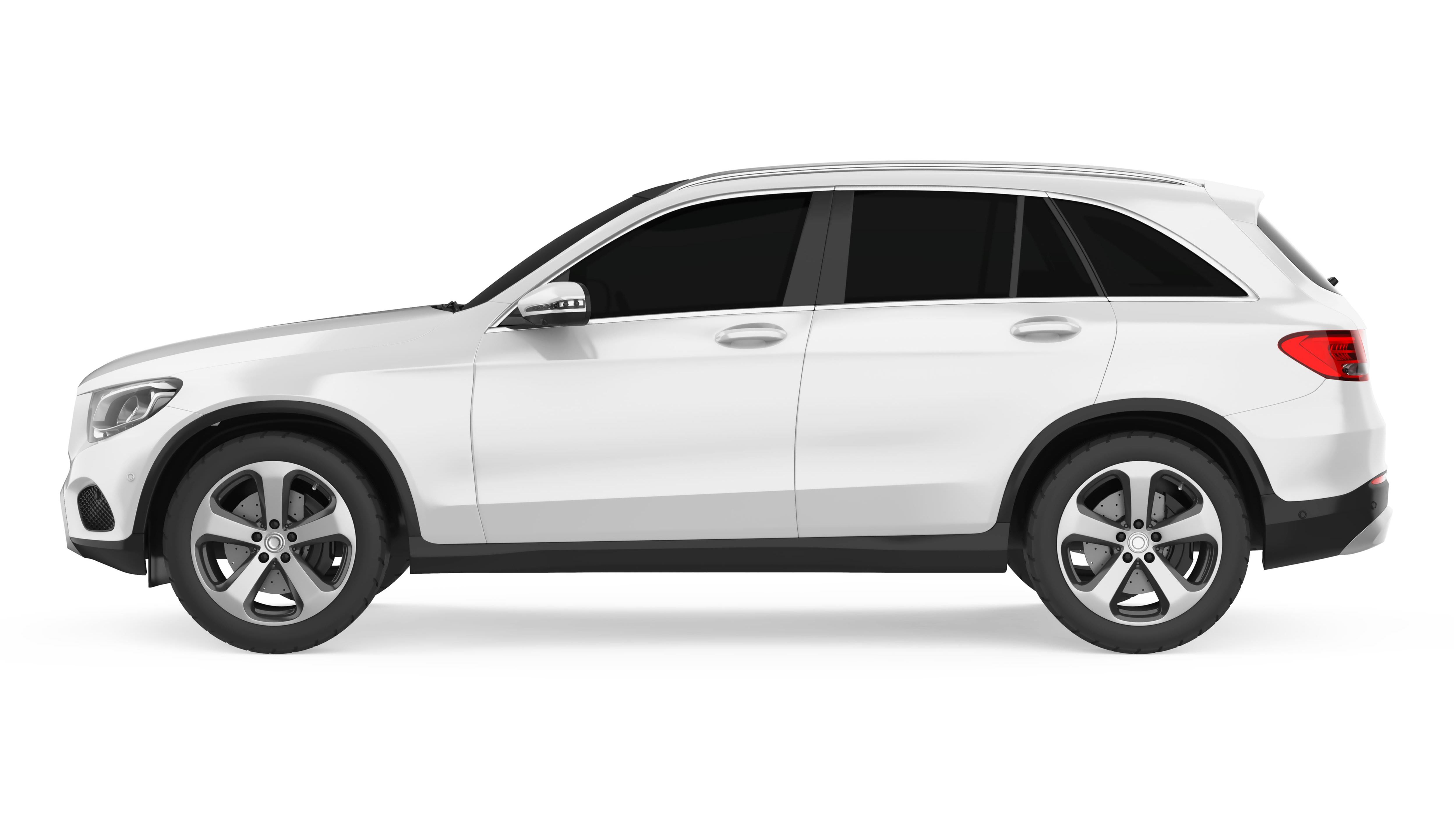

SUVs
FB - DIN EN 1522/23 level 4 + 7.62x39 MSC protection integrated in cabin doors.
.jpg?w=1&h=1)
Vans
Ballistic protection for cabin and cargo area in FB - DIN EN 1522/23 level 4 + 7.62x39 MSC. This included a lightweight armour kit for the sliding door that retained its function and ease-of-use.
Weight examples
Composite protection solutions are significantly lighter than equivalent steel solutions. We have optimized a range of protection solutions directly relevant for civilian vehicle protection.
In lower classes, such as FB4, the additional weight from the protection solution falls well within the tolerance limit for hinges and the addition of the protection solution is barely noticeable.
For higher threat levels we need to add more material to counter the higher energy of the ballistic threat. The composite solution, even in higher protection classes, still provide a significant weight saving in comparison with steel.
|
Class |
TenCate solution | |
| Thickness | AD | |
|
FB4 |
6mm | 5kg/m2 |
| FB4 + 7.62x39 MSC | 22mm | 18kg/m2 |
| FB5 | 20mm | 33kg/m2 |
|
FB6 |
20mm | 33kg/m2 |
| FB7 | 26mm | 51kg/m2 |
Advantages
Turn-key solution
Our competent team of engineers manage the whole armouring process based on your defined requirements for functionality and ballistic performance.
Adapted solution
The armour solution is developed to fit the vehicle and without interfering with existing components or functions. This means the car door power window will still function with the armour solution installed.
Fast turn-around
We can define, manufacture, and install protection solutions on short notice. Non-invasive installation methods means fast integration and delivery.
High ballistic performance
The composite protection solutions features a high multi-hit capability that protects against several hits even when close. In addition, the composite panels minimizes fragmentation in case of peneration.
Lighter than steel
Composite solutions are significantly lighter than comparable metallic solutions. This means higher vehicle performance and less stress on hinged and sliding doors.
Need more information?
At TenCate Advanced Armour our goal is to achieve the highest level of protection for your vehicle. If you have any questions or would like to learn more, please contact us.
